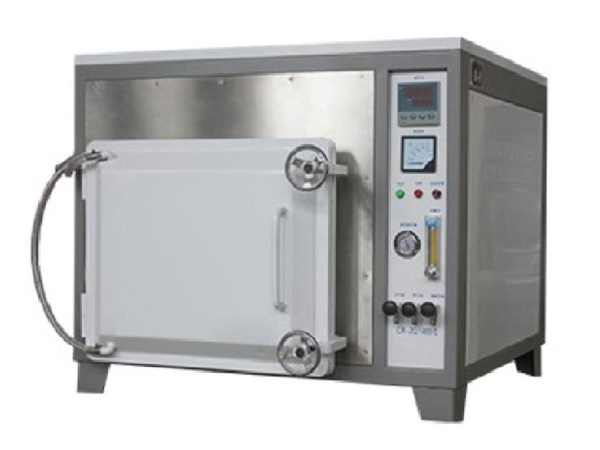

This equipment is widely used in universities, scientific research institutes, industrial and mining enterprises to do powder, military, aerospace, electronics, metallurgy, medicine, pottery theft, glass, machinery, new material development, special materials, refractory materials, building materials, chemical industry, metal sintering and metal heat treatment and other experimental and production ideal equipment<br /> <br /> Chamber sizeand temperature according to customer need;<br /> Control System:Computer control touch screen control micro-computer control
Advanced Eco-Efficient DesignThis equipment introduces foreign advanced technology, independent research and development production of efficient, energy-saving, environmental protection, new electric furnace, with advanced and reasonable structure, beautiful appearance, shell using high-quality cold rolled steel plate, advanced CNC machine tool processing, beautiful two-color imported epoxy powder electrostatic spraying process, processing, high temperature resistance, corrosion resistance, long-term do not fade; Using high quality heating elements, the furnace has the advantages of balanced temperature field, low surface temperature of furnace body, adjustable opening, protection and cooling rate, energy saving, etc.
Intelligent Ceramic PrecisionThe furnace is made of porcelain fiber material by unique numerical control technology, strong thermal shock resistance, strong cold and heat resistance, good corrosion resistance, no collapse, no crystallization, no slag, no pollution, long service life; The control system adopts computer artificial intelligence regulation technology, with PID regulation, automatic control, self-tuning function, multi-segment program programming, well can prepare a variety of temperature, heat preservation, cooling procedures, high precision temperature control; Integrated module thyristor control, phase-shift trigger; Protection system: independent over-temperature protection, over-pressure, over-current, leakage, short circuit and other protection, a high degree of automation, the indicators have reached the advanced level;

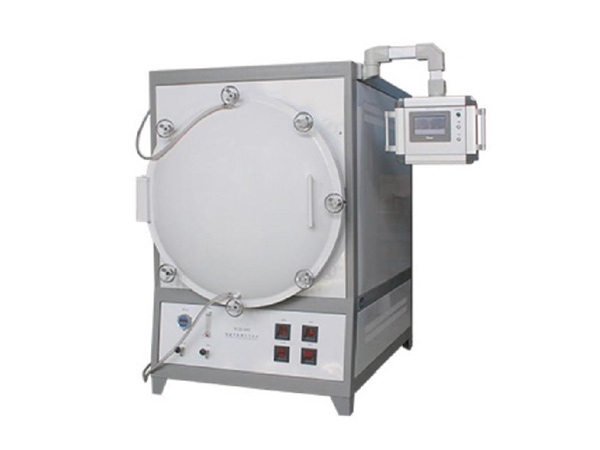

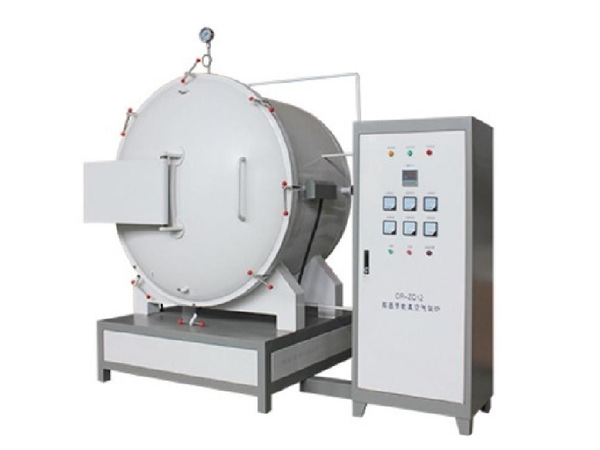

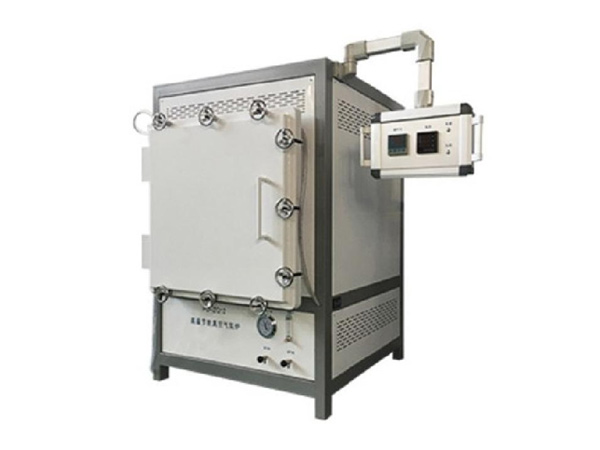

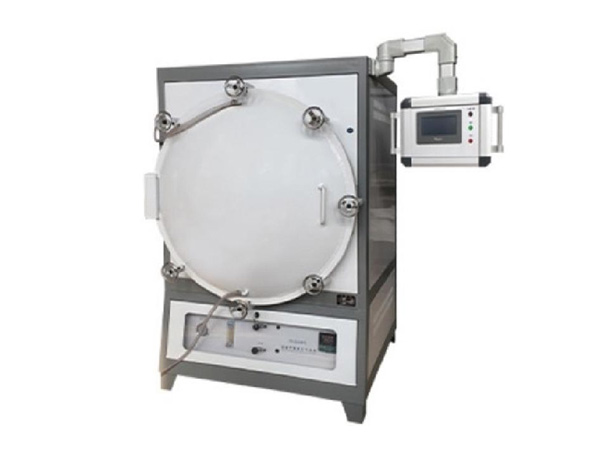

Multi-Gas Vacuum FlexibilityCan be vacuumed and through a variety of gases, valve control is equipped with air intake valve, exhaust moistening, vacuum valve; Can pass a variety of gases: vapor, nitrogen, oxygen, vacuum system adopts multistage O-type seal, heat-resistant rubber pad guaranteeReliable, vacuum leakage is small, the pressure in the furnace is displayed by the instrument, with vacuum interface conditions easy to operate
In addition, through the control software independently developed by our company, the electric furnace and the computer can be connected to achieve a single or multiple electric furnaces remote control, start the electric furnace, stop the electric furnace, set temperature control program, temperature control program storage, view the history curve, print the history curve, etc.;
Can add exhaust or exhaust chimney (with valve, can be closed when not in use), exhaust secondary combustion treatment, can meet environmental requirements:
Can add an observation window, real-time observation of material changes in the furnace;
The heating air can stir the air blade to achieve high furnace temperature uniformity.
| Chamber size | Voltage | Power | Temp controlaccuracy |
| 200×150×150 | 220 | 4 | ±1℃ |
| 300×200×120 | 220 | 6 | ±1℃ |
| 300×200×200 | 380 | 10 | ±1℃ |
| 400×250×160 | 380 | 12 | ±1℃ |
| 400×300×300 | 380 | 14 | ±1℃ |
| 500×300×200 | 380 | 15 | ±1℃ |
| 500×300×300 | 380 | 18 | ±1℃ |
| 500×400×400 | 380 | 20 | ±1℃ |
| 500×500×500 | 380 | 25 | ±1℃ |
| 800×500×500 | 380 | 40 | ±1℃ |
| 1200×800×800 | 380 | 95 | ±1℃ |
| 2000×800×800 | 380 | 150 | ±1℃ |
| Temperature:800℃.1000℃,1200℃,1400℃,1600℃,1700℃、1800℃、2200℃ | |||
1Consultation Share your specs: temperature range, throughput, automation needs.
2 Design and Development Interactive CAD models delivered.
3 Prototype Testing On-site trials with your actual materials at our facility.
4 Mass Production Full documentation package with certifications.
5DeliveryTransportation and after-sales service
GUANDN will design equipment based on your production volume, temperature needs (30–2200°C), automation requirements, footprint needs, and more.
From the initial design concept, production, to after - sales service, Our team of experienced engineers, with over 15 years of design experience on average, will work closely with you to provide CAD design, 3D layout, and max temp thermal simulation.
Share your specs—we’ll design, optimize, and deliver.
