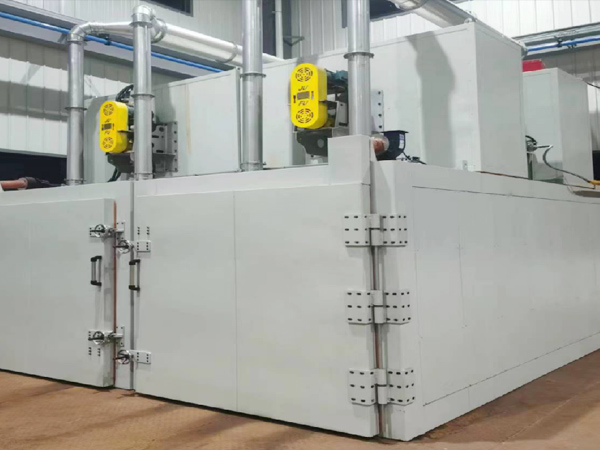

The GUANDN Inert atmosphere furnaces and ovens are specially designed for oxidation-prone and flammable materials, capable of high-temperature processing under inert gas (N₂/Ar) protection. Widely used in lithium battery materials, metal powders, advanced ceramics, semiconductors, and other high-end manufacturing fields.<br /> <br /> ＞Ideal for material sintering, powder drying, precision annealing, etc., effectively preventing oxidation, deterioration, or combustion risks.<br /> ＞Optional rapid cooling system available to significantly improve production efficiency.<br /> <br /> Standard gas interface: 1/4" Swagelok (applicable to other specifications).<br /> Optional multi-language operation interface (Chinese/English/Japanese/German).
Vacuum pre-pumping: integrated rotary vane pump, to achieve the "vacuum - inert gas" cycle
Water cooling system: rapid cooling to below 100 ° C (adjustable cooling rate)
Multi-gas mixing: Support N₂/H₂/Ar mixed atmosphere (ratio programmable)
Automatic feed in and out:docking mechanical arm to achieve fully enclosed production
Exhaust gas treatment:Catalytic combustion unit (compliant with EPA emission standards)
| Model number | Studio size (mm) | Temperature range | Oxygen content control | Power (KW) | Gas consumption |
| IA-60 | 400×400×400 | RT~800℃ | <50ppm | 12 | N₂ 5L/min |
| IA-150 | 600×500×500 | RT~1200℃ | <10ppm | 25 | Ar 10L/min |
| IA-300 | 800×600×600 | RT~600℃ | <100ppm | 18 | N₂ 15L/min |
| custom | On-demand design | RT~1600℃ | <5ppm | As needed | As needed |
1Consultation Share your specs: temperature range, throughput, automation needs.
2 Design and Development Interactive CAD models delivered.
3 Prototype Testing On-site trials with your actual materials at our facility.
4 Mass Production Full documentation package with certifications.
5DeliveryTransportation and after-sales service
GUANDN will design equipment based on your production volume, temperature needs (30–2200°C), automation requirements, footprint needs, and more.
From the initial design concept, production, to after - sales service, Our team of experienced engineers, with over 15 years of design experience on average, will work closely with you to provide CAD design, 3D layout, and max temp thermal simulation.
Share your specs—we’ll design, optimize, and deliver.
